Modify order status

In this section of the tutorial you will create the NeXTensio form that works with the master NeXTensio List, and allows modifying its elements. The NeXTensio Form is a multi-functional form, allowing all of the regular operations: insert, update and delete. Since adding a new order is not allowed, you will have to delete some of the elements on page.

To build the form page, follow the next steps:
  1. Open the form page in Dreamweaver (it is the page with the same name as specified in the first Create NeXTensio List Wizard).
  2. Start the Create NeXTensio Form Wizard from the MX Kollection tab of the Insert bar.

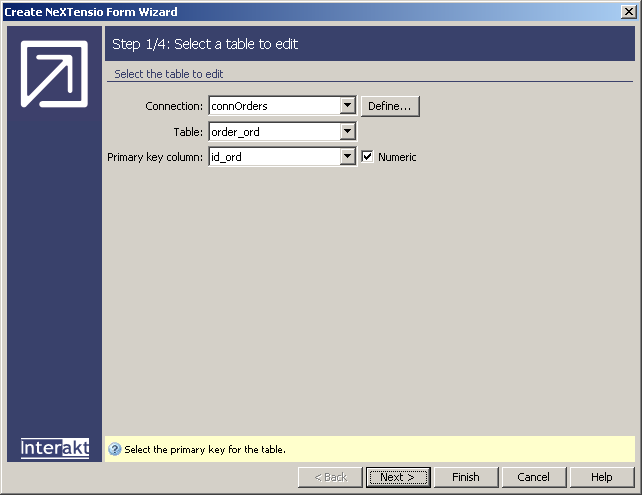

  3. In the wizard's first step, make sure the right connection and the order_ord table are selected. Click Next to proceed to the second step.

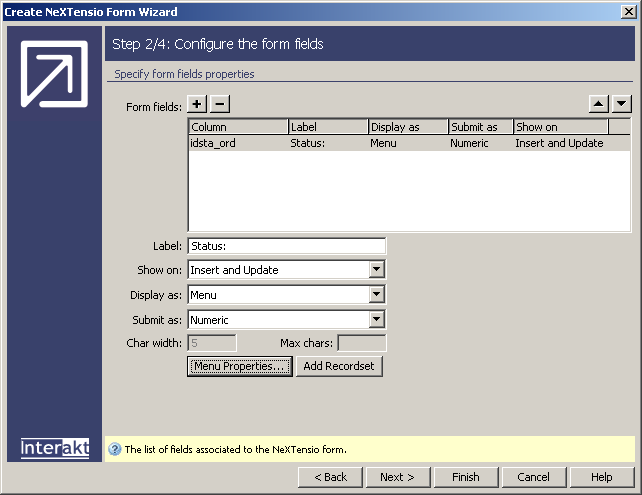

  4. In the wizard's second step define the fields that will be displayed in the form and taken into account when executing various operations. Since the only changeable property is the status, remove all the other fields except for the idsta_ord from the grid.
    To remove a field, select it and press the Minus (-) button. Also thanks to the user persistence, the idsta_ord field should be configured to be displayed as a menu, and its recordset is automatically generated based on the choices made when creating the list (the look-up table).



  5. The third step provides options to set validation rules for each field. Since you are already using a drop-down menu with predefined options, you can safely skip this step and move on to the last one.

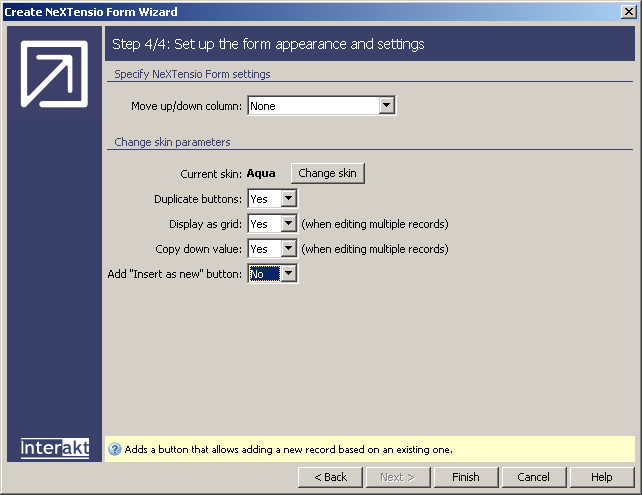

  6. The last step allows defining general form options: the move up/down column, skin, buttons and the use of grid when editing multiple records. Also, you can specify whether to display the Insert as new button. And since adding is not allowed, select No in that drop-down menu:

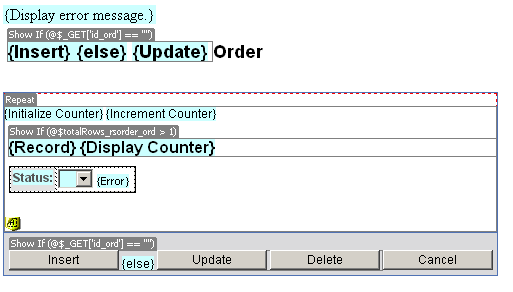

  7. Now click Finish to close the wizard and add all the elements to the page. This will add both HTML elements and application logic to the page.



  8. Before saving and uploading the page, also remove the Insert button in the image above, as it is not necessary for the page.

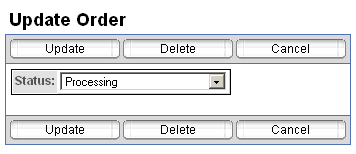

Now, when you click the edit button next to an order in the master NeXTensio list, the following form will be displayed:




Now the basic order management application is completed. You can improve it by adding administrative modules for users, or even making it more complex.
