Before you start building this application, make sure you have a correctly configured Dreamweaver site, and a working database connection. For more instructions regarding these actions, consult the Getting started help file, which can be found in Help -> InterAKT -> Getting Started.
Through the tutorial, you will have to create several files and folders in your site's root. You can create them at the very beginning, so that you will not waste time with this operation again. To create files and folders in the site's root, use the corresponding options in the File menu of the Files tab.

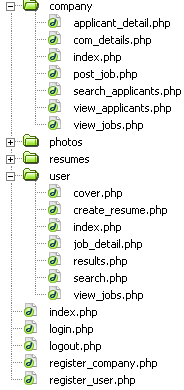

The file structure will look as in the example below, and you can create
it easily by unpacking the zip file corresponding
to your server model
from \tutorials\Job Site\ in your site root:
Note that some of the files seen in this structure already contain some data (e.g. links and other non-dynamic content) to ease following the tutorial (the index files), while other are automatically generated by some of the commands used, and thus, are missing from the zip file (e.g. activation, forgot_password). Here's a short description of each page:
company/applicant_detail - displays background information of a job applicant
company/com_details - a form to edit Company information (name, address)
company/index - a portal page with links to other Company pages
company/post_job - a form to submit a new job posting
company/search_applicants - a search form for finding suitable applicants
company/view_applicants - displays a list of those who have applied to a specific job
company/view_jobs - a list of the jobs posted by a particular company
company/update_account - allows updating account details
user/create_resume - a form for users to submit a resume - includes a file upload field for resume documents
user/index - a portal page with links to other user pages
user/job_detail - displays the full details of a particular job
user/results - displays the results from the user/search page
user/search - a search pages for users to find jobs
user/view_jobs - a list of all current jobs
user/write_letter - a form allowing a user to submit a cover letter
user/ view_subscription - page for users to subscribe to an email list
user/edit_subscription - lets users edit their email preferences
forgot_password - page for those who have forgotten their passwords
index - some text
login - contains a login form which sends the site-user to either the company/index page, or user/index page based on their username
register_user - registration page for users
register_company - registration page for companies
After having created the files for your pages, it is time to set up the database that will hold the information to display. For this tutorial, you will use several tables, containing various data regarding the companies, users, and job ads. Aside the main tables, you will use some tables to store additional data. The tables are:
company_com - to
store the company main information.
· id_com
- the primary key for the company table. No two companies can have the
same ID.
· idusr_com
- a foreign key to the company's entry in the users table. Login and access
restrictions are stored there.
· name_com
- the company's name (Amazon, Best Buy etc.)
· address_com
- stores the company address (123 Main St, Cleveland, OH).
user_usr - stores
the user data: e-mail, password etc.
· id_usr
- the primary key
for the user table. No two users can have the same ID.
· password_usr
- stores user password.
· active_usr
- a boolean variable (Y/N) based on whether the user account is active
or not.
· level_usr
- either a 1 or a 0 depending on whether the user is a company or an applicant.
· email_usr
- the email address of the user (john_smith@noplace.org).
job_job - stores job
related information: job title, type, domain, salary, deadline etc.
· id_job
- the primary key
for the job table. No two jobs can have the same ID.
· idcom_job
- a foreign
key to the company table. Stores which company has posted the job.
· iddom_job
- foreign key to the domain_dom table; the domain refers to the category
of the job (Finance, Sales, Technology etc.).
· idloc_job
- foreign key to the location_loc table; stores the location of employment
offering.
· title_job
- the job
title (Developer, Manager etc.).
· type_job
- the job
type can refer to the duration or hours involved (Full-time, Part-time,
Contract etc.).
· salary_job
- stores
the salary amount.
· deadline_job
- a date by which the applicant must apply.
· detail_job
- some additional text information about the job (education, specific
skills etc.).
resume_rsm - stores
user's resumes, with name, phone, photo etc.
· id_rsm
- stores the primary key for the resume table. No two resumes can have
the same ID.
· idusr_rsm
- a foreign key to the users table. Keeps track of who the resume
belongs to.
· name_usr_rsm
- stores an applicant's first and last names.
· phone_usr_rsm
- applicant's phone number.
· photo_usr_rsm
- can store an image of the applicant (field is optional).
· file_rsm
- stores
the resume file.
· pref_domain_rsm
- the
preferred job domain (Finance, Technology etc.).
· pref_location_rsm
- the
applicants preferred location (a city name).
· pref_salary_rsm
- the
preferred salary from the applicant's registration input.
job_user_jbu - table
to link users and jobs, with multiple users being able to apply for multiple
jobs.
· id_jbu
- the primary key for the job user table. Every time an applicant applies
for a job, a new job_user record is stored.
· idrsm_jbu
- foreign key to resume table.
· idjob_jbu
- foreign key to job table.
· date_jbu
- the date of application.
location_loc - table
to store available job locations.
· id_loc
- the primary key for the location table. No two locations can have the
same ID.
· name_loc
- the location name, usually a city (Rome, Chicago etc.).
domain_dom - stores
job ad domains.
· id_dom
- primary key for the domain table. No two domains will have the same
name.
· name_dom
- the domain name (Finance, Technology etc.).
cover_cvr - stores the
users' cover letters.
· id_cvr
- the primary key.
· idusr_cvr
- a foreign key to the users table. Keeps track of who the cover letter
belongs to.
· letter_cvr
- stores the cover letter filename so that it can be retrieved quickly.
subscribe_sub - table
to store user subscription to receive ads by e-mail.
· id_sub
- stores the primary key for the subscription table.
· idusr_sub
- a foreign key to the users table. Keeps track of who the subscription
belongs to.
· type_sub
- the preferred job type.
· iddom_sub
- foreign key to the domain table, stores the preferred domain for the
job.
· location_sub
- preferred job location.
· minsal_sub
- the
minimum desired salary.

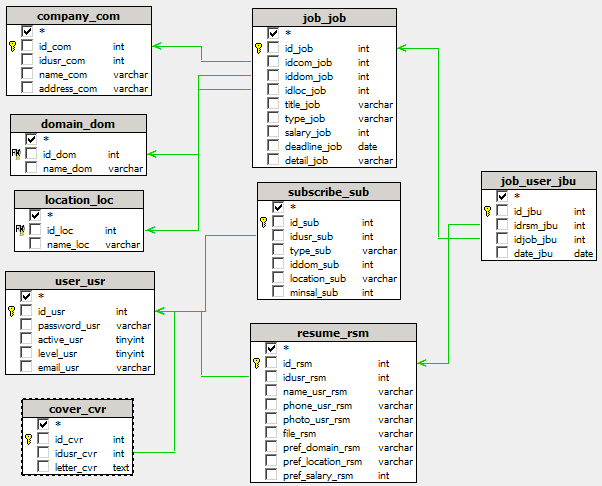

Below is a layout of the database tables:
Note: The database diagram in the image above was built with MX Query Builder (also referred as QuB) to better illustrate the database structure. You do not need to build it in order to complete this tutorial.
You can find the scripts needed to create an identical table structure inside the downloaded package, in the \tutorials\Job Site\db\ folder, as an sql or mdb file, depending on the database server you intend to use. Import them in your database server management software (e.g. PHPMyAdmin, Microsoft Access etc.).
The scripts come with some sample data that you can use to quickly view the results. The account data you need to login are:
The user account: username - mike@hisbusiness.com; password: root.
The company account: username - hres@interakt.com; password: root.
Aside these two accounts there are some more already created. They all use the same password: root. The usernames are: recruit@oracle.info, hr@macromedia.tk, admin@domain.org.

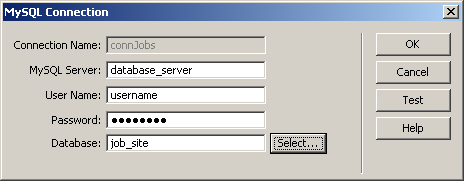

Open the main index page and create a new
connection named connJobs and configure it
to connect to your newly created database:
The index page already contains links that allow company and user registration, as well as a link to the login page. You do not have to alter these links as this is not the scope of this tutorial.
